AEV Geometry Correction Front Control Arm Drop Brackets ('07-'18 Wrangler JK)
AEV's Front Control Arm Drop Brackets pack a lot of suspension performance improvements into a small and affordable package. These drop brackets will improve front impact ride quality (expansion joints, ledges), increase anti-dive for improved braking performance, decrease the operating angle range of the front driveshaft, and eliminate the need for adjustable control arms or cam bolts for caster correction. AEV Front Control Arm Drop Brackets are included in all AEV 3.5"/4.5" DualSport suspensions, but can also be added to AEV's 2.5" DualSport suspension as well as other manufacturer's suspensions. See Tech Specs for more details.
- Improve front impact ride quality (expansion joints, ledges) – By reducing the operating angle of the front control arms, the suspension is allowed to work in a more natural state. This means that when hitting a bump, the force applied to the control arms is directed up into the springs instead of back directly into the frame. In effect an AEV 3.5" lifted JK "thinks" its lifted only 1.25".
- Change the instant center to increase Anti-Dive for improved braking performance - By increasing the anti-dive geometry of the suspension, you'll notice the front of the vehicle will barely drop under hard braking when the control arm brackets are used. By increasing force on the front wheels, traction is increased for better straight line braking and by reducing the shifting weight and inertia under braking in curves, handling is greatly improved.
- Decrease the operating angle range of the front driveshaft – This one is often overlooked. Aftermarket double cardan joints do not have the torque rating (1850 lb/ft for t a 1310 double cardan, 2150 lb/ft for the OE CV Joint) and they can’t run as smoothly so its advantageous for most JK use to keep the stock CV units. The Front Control Arm Brackets rotate the pinion up as the axle drops to eliminate torn boots on the CV for long life with a lifted application.
- Eliminate the need for adjustable control arms or cam bolts for caster correction - We've been touting the benefits of using the stock control arms for a long time because of the pre-loaded rubber OE Bushings that the factory uses, and because that quality has yet to be rivaled in any aftermarket bushing. These new brackets allow for the proper caster ranges to be achieved.
Please note: Adjustable Control Arms are not a replacement for drop brackets - Its often misunderstood that higher priced adjustable control arms have the same effect as AEV's control arm brackets and that the brackets are just a cheaper option than providing adjustable control arms. Nothing could be farther from the truth, both components do separate and different things and both have their place under a Jeep. Both products can adjust the castor angle which is where much of the confusion stems from.
AEV's drop brackets change four distinct parameters:
- Lowers arm angle for ride quality.
- Lowers the instant center for better braking (antidive).
- Decreases operating angle of the driveshaft by reducing the range of travel.
- Corrects caster angles.
Adjustable control arms can certainly allow the proper caster angle to be dialed in, however they are incapable of all the other parameter changes, and in fact make the instant center, ride quality and driveshaft angles all worse than stock. Adjustable control arms can do some things that the drop brackets can not:
- Move the axle position forward or aft which may be required with aftermarket HD axles.
- Change the pinion angles for aftermarket Cardan or Double Cardan driveshafts.
- Correct minor deviations in suspension geometry after an accident with mild frame damage.

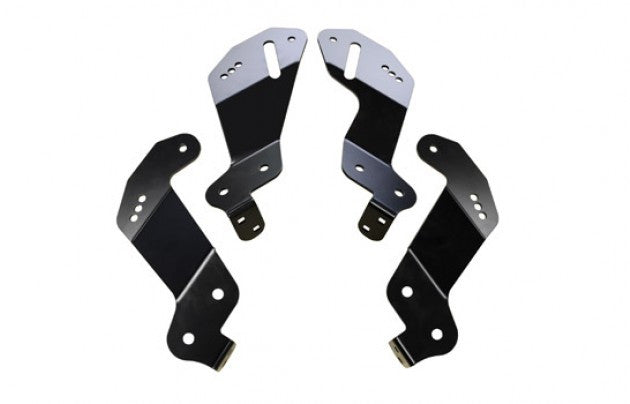

Manufacturing Process: Fabricated steel
Material: 3/16" steel
Coatings: Black Powdercoat
Application: 2007+ JK Wrangler
Made In: United States
Note: Must be used on suspensions with 2.5"-5.0" of lift. Minimum of 2.0" jounce spacing is required. AEV cannot guarantee compatibility with all manufacturer's suspensions.
If you are installing this kit to a previously installed suspension system that utilized cam bolts, you'll want to order the cam bolt eliminator kit P/N AEV99064AA (M14 bolt, nut, and two thick washers). You can tack weld the washers to add more support.
Difficulty Level: Easy
Estimated Install Time: 1-2 hours
Required Tools: Common Hand Tools

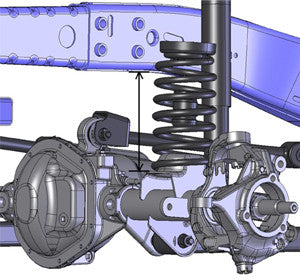

Note: If your measurement is less than 5 1/2 inches we do not recommend these brackets
- If your measurement is greater than 9 inches adjustable control arms may be required to achieve proper caster angle.
- If your measurement is 5 1/2 to 6 1/2 inches you'll install the upper control arm in the upper hole location (2.5") as illustrated on page 4 of the install sheet.
- If your measurement is 7-8 inches you'll install the upper control arm in the middle hole location (3.5") as illustrated on page 4 of the install sheet.
- If your measurement is from 8 to 9 inches you'll install the upper control arm in the lower hole location (4.5") as illustrated on page 4 of the install sheet.
